Kawasaki Z1 to Z900

Including history, model identification and photos of each version.

Rod Ker time travels......back to 1972



1972 Kawasaki  Z1 Super4  European Specification

1972 Kawasaki Z1 Super 4 - was this brochure pinned on your bedroom wall?

It’s generally agreed that Honda’s CB750 four, launched in 1969, was the world’s first superbike. Surprisingly, it took another three years before a rival manufacturer produced a direct competitor (brief pause for fans of the Triumph Trident and BSA Rocket III to send irate e-mails to info@classicbikes.co.uk). The motorcycle in question was, of course, the Kawasaki Z1, which went on sale in America in 1972 and The UK in ’73.

1973 Kawasaki Z1 900 - a very rare original UK registered example in Candy Orange

1973 Kawasaki Z1 900

A very rare original UK registered example in Candy Orange (rear shocks & often prefered short guard, are US spec.).

Kawasaki actually had a four-stroke 750 four in development when Honda dropped their bombshell. The project was promptly shelved to concentrate on the three-cylinder, ‘Green Meanie’ two-strokes, which came out at about the same time as the CB750 but sold to an entirely different type of person (lunatics, mainly). Unfortunately, noisy, gas-guzzling, polluting two-strokes were doomed even in the late Sixties, which meant that the triples had a limited life expectancy. Kawasaki knew that four-strokes would be the only type of engine allowed in the clean green future, so after a couple of years the R&D dept blew the dust off the plans of their still-born four.
Thus began the ‘New York Steak’ project, with ‘Ben’ Inamura heading the design team. Things happened quickly. Prototypes disguised as Honda CB750s were plying the roads of America by 1971, clocking up big mileages to make sure that everything was right first time.

The 72  Z1 motor - a 903cc masterpiece of design excellence and visual beauty !

A 1972 Z1 motor - a true masterpiece

 (note plastic plug caps as fitted for the Italian market)

Obviously, Kawasaki’s four would have to be more super than Honda’s, which basically meant bigger and more powerful. About a litre of displacement was envisaged initially, but the capacity actually settled at 903cc, maybe because they didn’t want to scare people too much. While both the Honda and Kawasaki used transverse four-cylinder power units installed in double-cradle frames, the details were rather different. The CB750’s long-stroke, 736cc plain-bearing engine used a pair of roller chains for primary drive, and had a single overhead camshaft running in separate carriers bolted to the top of the cylinder head. The valves were opened by rocker arms, with tappets adjustable by screws. Lubrication was dry-sump, oil being carried in a tank under the side panel, as on a traditional British bike.
Conversely, Kawasaki’s four stored its oil in the sump, and used a built-up roller bearing crankshaft, with gear primary drive. In some respects the bottom end therefore had a few things in common with the company’s two-strokes. A central roller chain drove a pair of camshafts, effectively running in the cylinder head (in replaceable split shell bearings), opening the valves directly through bucket tappets, with clearances adjustable by shims. Honda’s 1967 CB450 twin had been the first generally available dohc bike engine, but such things had been common in the car world for decades. Most famously, Jaguars had used twin cam XK engines since 1948, and the Z1’s top end was actually quite similar in layout, except that it was cooled by air, not water, of course.
Breathing through a quartet of 28mm carburettors, Kawasaki claimed 82PS at 8500rpm -- which is a bit less than the 82bhp often quoted, incidentally. (Pferde Starke is the metric version of horsepower. 1PS = 0.9863bhp) The crucial bit was that this was about 15bhp more than the CB750! In terms of specific output, the two were therefore very close. The scaled-down 746cc Z2 produced for the Japanese market gave 69PS, possibly because it would have been unthinkable not to beat the CB750’s quoted 67.

 1972 Kawasaki 900 Super 4

1973 Kawasaki Z1 in Candy Yellow

Above a 1973 Kawasaki Z1 900 in Candy Yellow.

Left an original sales brochure for the Z1 "Super 4".

Such an incredible engine needed an incredible chassis .... Alas, the Z1 - or Super 4, as it was almost christened – didn’t really have one! There was some talk of the double-cradle frame being inspired by the Norton Featherbed, which was probably almost true, because every motorcycle made since the 1950’s must have been influenced by Norton’s frame to some extent, but this was totally irrelevant. Norton only had about 50bhp and 350lb to deal with, not 80bhp and a bike that would tip the scales at over 500lb. Seen in isolation, the Z1 frame looked very strong, with a well-braced steering head and swinging arm pivot. The spindly front forks, with their short sliders, were probably the weak link, but they were still about as good, or bad, as anything else around at the time.
Z1 imports to the UK began in 1973, just in time for the oil crisis, when petrol prices were leaping over 50p per gallon. The big four was designed to run on 2-Star, but it wasn’t the best time to launch the fastest motorcycle ever, all the same. Only 44 were sold in Blighty in the first year, which tended to indicate that £1200 motorcycles weren’t top of many shopping lists. There was more to it than that, though, because most of the people who wanted a Z1 couldn’t buy one at any price. Kawasaki made about 80,000 dohc fours in the first two years, but all the 750s were staying in Japan, while lucky Americans bagged most of the 900s.
Shortage of supply also explains why there weren’t many road tests in British magazines. Agrati, the importer until Kawasaki UK set up shop, didn’t have a Z1 for press purposes, so Bike begged one from a dealer to do a comparison with a Honda CB750. They loved it! The only slight criticism was directed at the gearbox. Everything else was apparently just about perfect - including the handling, it’s interesting to note, in view of the bike’s later reputation. After the evil antics of the triples, memorably called the fastest camel in the world by the same magazine, they were expecting trouble. But no: ‘The handling was perhaps the most impressive thing about the big machine, so much so that anyone who owns one might be well advised to take out the centre stand. It‘s just too easy to ground it.’ This test was written by someone who raced bikes, and he backed up his opinion with info on Kawasaki’s development programme, which included extensive track testing by Paul Smart and Yvon Du Hamel, who managed to average 122 miles in an hour on a Z1. Smart was quoted as saying that the bike would have finished in the top ten at Daytona.
The summary couldn’t have been more complimentary: ‘Kawasaki have made what looks like becoming a classic machine. It’s both simple and elegant to the eye, and sophisticated in design. It is strong, a joy to ride and handles like a machine 200lb lighter. It’s incredibly fast, and, yes - safe.’ Some would disagree with the last point, but the bit about becoming a classic machine now seems more than a little prophetic.

1974 Kawasaki Z1A 900

The 1974 Kawasaki Z1A 900
This example is in Candy Green/ / Yellow and was restored by Steve Smethhurst and Classic Bikes Ltd. NB This is a USA spec. example on which the owner has fitted a UK spec. seat strap.

 1974 Kawasaki Z1A 900 sales brochure

An original Kawasaki brochure for the 1974 Kawasaki Z1A 900 (UK Spec.)

1974 Kawasaki Z1A in Candy Brown/Orange

1974 Kawasaki Z1A 900 in Candy Brown/Orange (USA Spec.)

To build on their success, Kawasaki planned a new model for 1974 beginning production in the summer of 1973 from frame number Z1F-020001 on. This was the Z1A which is most obviously distinguished from the Z1 by its two new colour schemes (see photos). The factory worked hard to improve their product lerning from customer feed back which in the case of the Z1 was generally full of praise! However, some improvements and many detail changes were made, the most dramatic being the loss of the iconic black engine finish which was not proving very durable. Nevertheless very early Z1As still have black crank cases and other Z1 details later lost. The bike continued to evolve over the model year with for example modified carburettors being introduced.

1975 Kawasaki Z1B 900 in candy super red

The 1975 Kawasaki Z1B 900
This is Ian Kane's lovely example in Candy Super Red., a USA specification bike with side reflectors, short rear guard and no seat strap.

1975 Kawasaki Z1B 900 sales brochure

An original sales brochure for the 1975 Kawasaki Z1B 900 (USA Spec.)

1975 Kawasaki Z1B 900 UK specification

1975 Kawasaki Z1B 900 in Candy Super Blue. UK Specification with long rear guard, seat strap, no side reflectors and optional twin disks.

Z1B 900 Specification
Engine: 903cc (66x66mm), air-cooled, DOHC 8-valve four, Mikuni VM28SC carbs (Z1A & B), 82HP @ 8,500 rpm 54.3ft-lbs @ 7,000rpm, five speed gearbox
Electrics: 12v alternator, points ignition
Frame Tubular, double-cradle
Dimensions: wheelbase 58.7 in, overall length 86.6 in (2200mm).
 Fuel capacity 4.2 US gal,
 Dry weight 511 lb (232 kg)

The Z1B was the updated model for 1975 begining with frame number Z1F-047500 from June 1974. Again the "Candy Super" blue & red colour schemes for 1975 are the striking feature. The bike had now lost her automatic chain oiler system, and the Kawasaki Model Recognition Manual advises that a "special chain with sealed-in grease" was fitted. There are again many small detail changes such as the speedo switching to increments of 10mph instead of 20mph as on the Z1 and Z1A.
Motorcycle Mechanics tested a Z1B in 1974, recording a top speed of over 130mph and a standing quarter in under 12.5 seconds, although they seemed keen to play down the performance and preferred to concentrate on practicality. ‘One of the three best bikes I have ever ridden,’ the writer concluded after 2000 miles. The only complaints concerned the tyres and lights, and the fact that he didn’t have £1177 to buy a new Z1. Again, no problems with the handling. Motorcyclist Illustrated was less enthusiastic, with comments about the suspension being ‘mediocrely average’, although the tester admitted that it was difficult to judge the handling due to terrible weather.

1976 Kawasaki Z900A4 UK Specification



The 1976 Kawasaki (K)Z900-A4
An Original UK registered bike in Diamond Dark Green with twin front disks, long rear guard and seat strap.

1976 Kawasaki Z900A4 Brochure

1976 Kawasaki Z900A4 in Diamond Brown

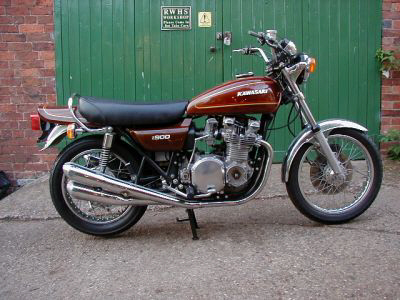

Above a 1976 Kawasaki Z900A4 in Diamond Brown. USA Specification.

Left an original Kawasaki sales brochure for the 1976 Kawasaki Z900A4 (UK Spec.)

The Z1B carried on until 1976, when the Z900 arrived, listed at £1369. Starting from frame number Z1F-085701 the new bike maintained the Z1's lovely looks, but this was infact a substantially re-engineered machine. In addition to new Diamond Dark Green or Brown paintwork, the Z900 featured new bodywork, instruments, electrics, carburetors, improved frame, forks and brakes. Kawasaki list this machine as the (K)Z900-A4. The KZ badge was now being used in the North American Market due to legal issues over the Z logo. In Europe she was still badged as the Z900 and the Factory Model Recognition Manual notes that "the "Z900" has dual-disc brake up front" (The Manual gives model "nicknames...in parentheses"). The twin disk front brake which had always been an optional extra, now became a standard feature on bikes destined for the demanding European market. On the mechanical side, the more reliable new Mikuni carburetors were now down to 26mm, partly accounting for a quoted loss of one horsepower. Meanwhile, weight was up by about 25lb, for reasons that weren't entirely obvious. Motorcyclist Illustrated had a theory: ‘It seems that the secret lies in heavier gauge frame tubing all round.’ This may have explained a reported improvement in handling. In particular, high speed stability was much better, they reckoned. It should be noted that the Z900-A4 was now being manufactured at Kawasaki's new plant at Lincoln, Nebraska, USA as well as in Japan.

Kawasaki Model Recognition Manual

Kawasaki Model Recognition Manulal Z1B & A4

The Kawasaki Factory Model Recognition Manual
Enteries for the Z1, Z1A, Z1B and Z900-A4 Models 1972 to 1977. Showing Frame and Engine numbers etc..

The Z900 only lasted a year before being replaced by the Z1000, basically the same bike with a 1015cc overbore, 4-2 exhausts, some extra frame gusseting and a rear disk brake. Low speed torque was up but flat-out performance was down, despite a claimed increase in power to 83bhp at 8000rpm. MCI was back on the case in 1977, taking time to have a scoff at earlier praise of the Z1’s handling by road testers from other magazines, before saying that the Z1000 was much better, even if it was ‘no Ducati’.
Never mind Italian bikes, the main problem for Kawasaki by this stage was the arrival of competition from other Japanese manufacturers. Yamaha, Honda and Suzuki all offered tempting alternatives. In particular, the GS750 and later GS1000 made the Z1000 look like a has-been. The King may not have been quite dead yet, but the throne was definitely beginning to show signs of woodworm.
While standard Z1s and Z900s are the bikes most in demand now, mention should also be made of the 900LTD, often said to be the first ‘factory custom’. Designed and modified in America, using American add-ons, this rare (then and now, especially in the UK) model came with Morris mag wheels, a fat rear tyre and slash cut mufflers. Kawasaki really hit gold here, because other LTDs of various capacities became available later in the 1970s, and soon every other Japanese manufacturer was offering something similar.

1976 Kawasaki Z900Ltd

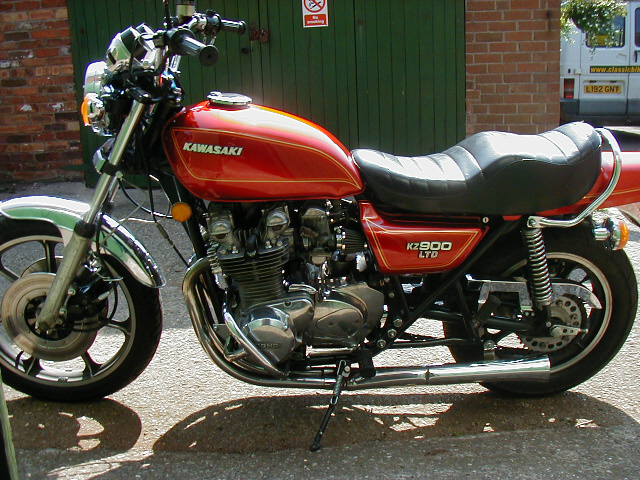

A 1976 Kawasaki Z900Ltd

Sold new in the USA this example is very original (note the after market K&N air filters)

Original Handbooks and publicity material for Z1s

By Rod Ker, February 2007 and up-dated 2012
